X-MAX FLAT SERIES
Revolutionary Stage Rental LED Display Solution
Lightweight, Flexible, And Built For Speed. One-Person Installation, Universal Power Box, And Creative Curved Splicing (45° Max). Supports Indoor/Outdoor Use, Stacking Up To 10m, And Delivers Stunning 7680Hz Visuals With 16-Bit Grayscale.
X-MAX FLat SERIES Key Features

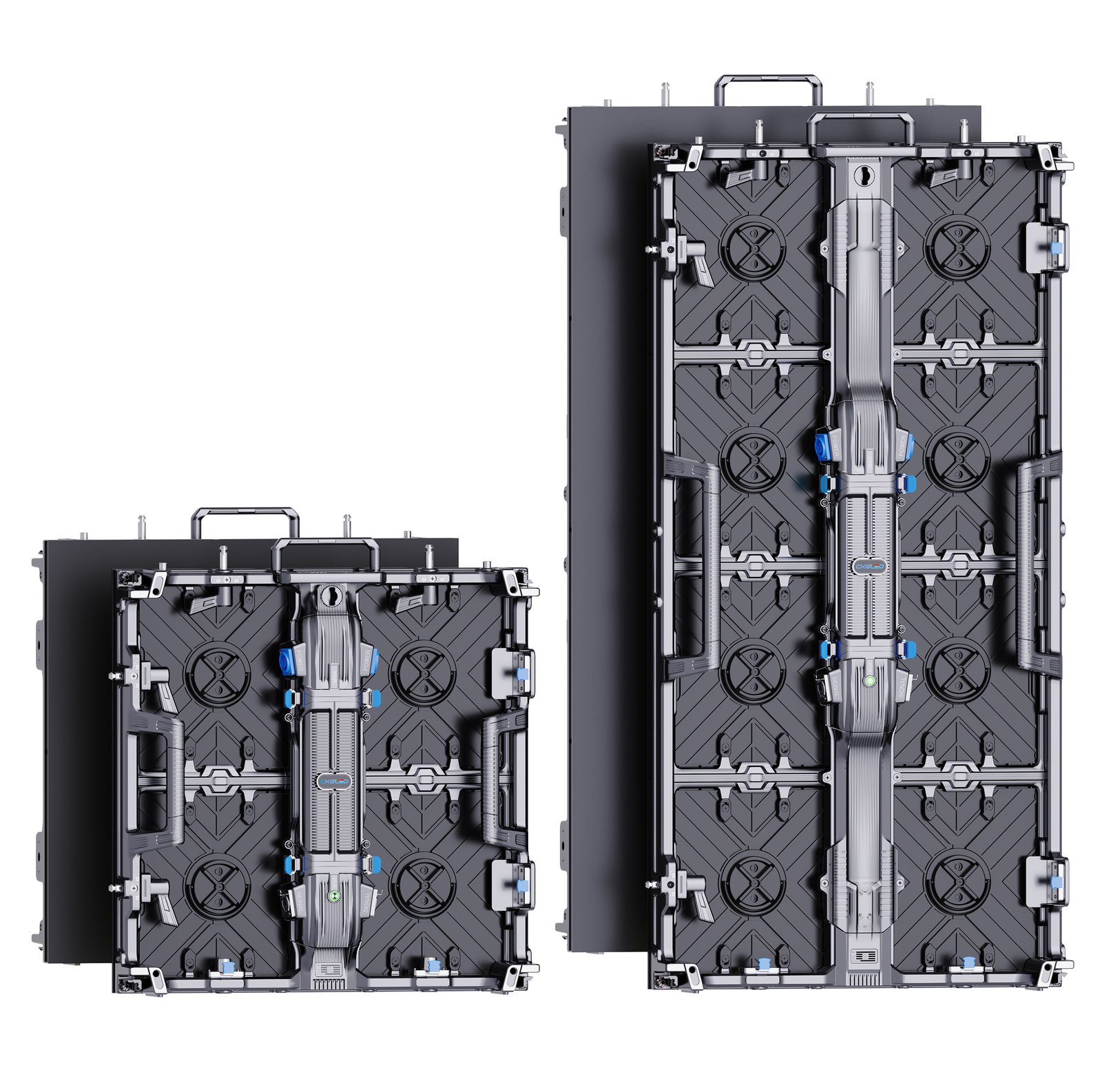

Two Cabinet Sizes Available
Choose From 500x500mm Or 500x1000mm Cabinets, Both Spliceable With Each Other.

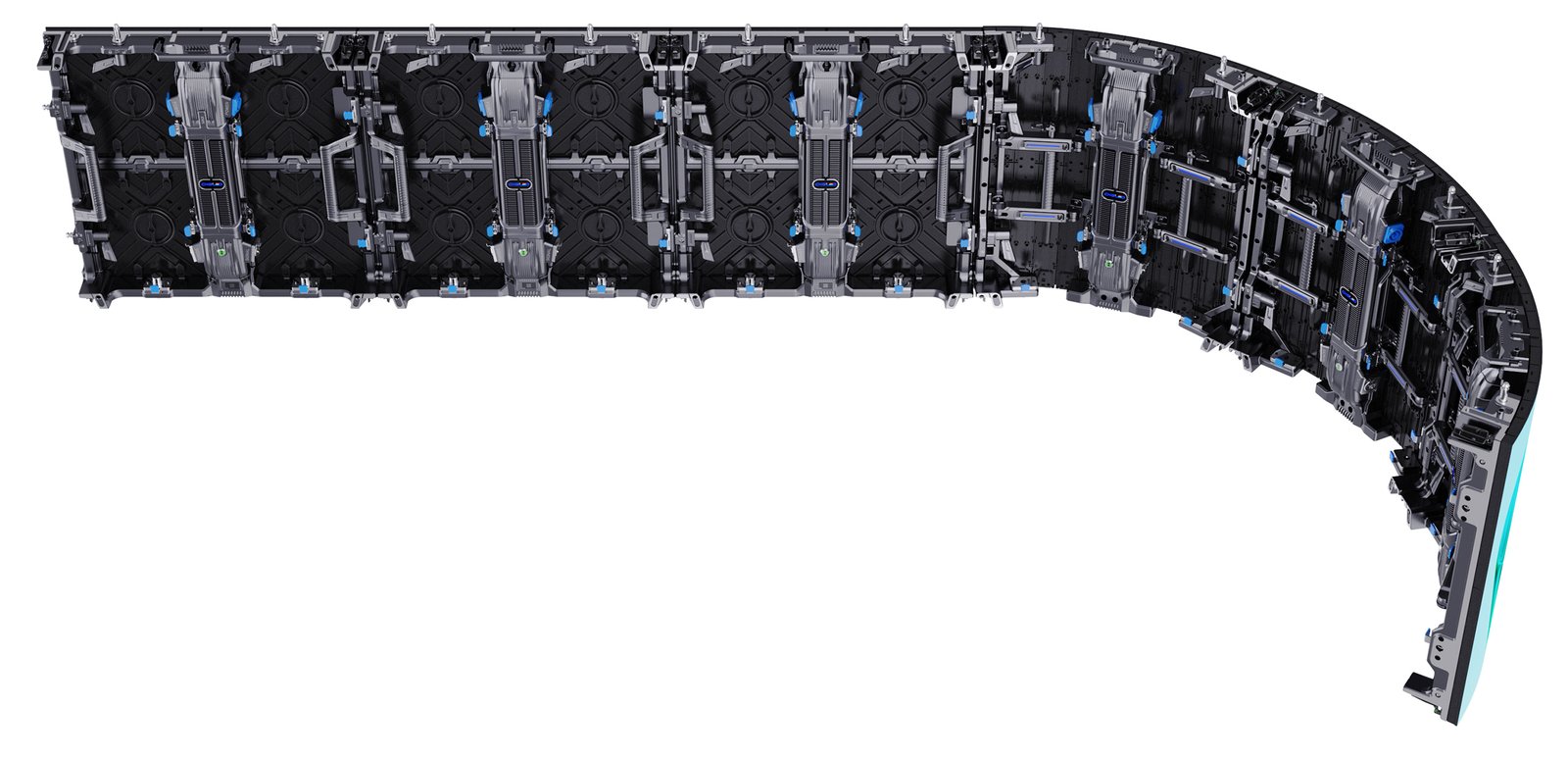

Expand Your Creative Canvas
Seamless Splicing With The Flexible Series

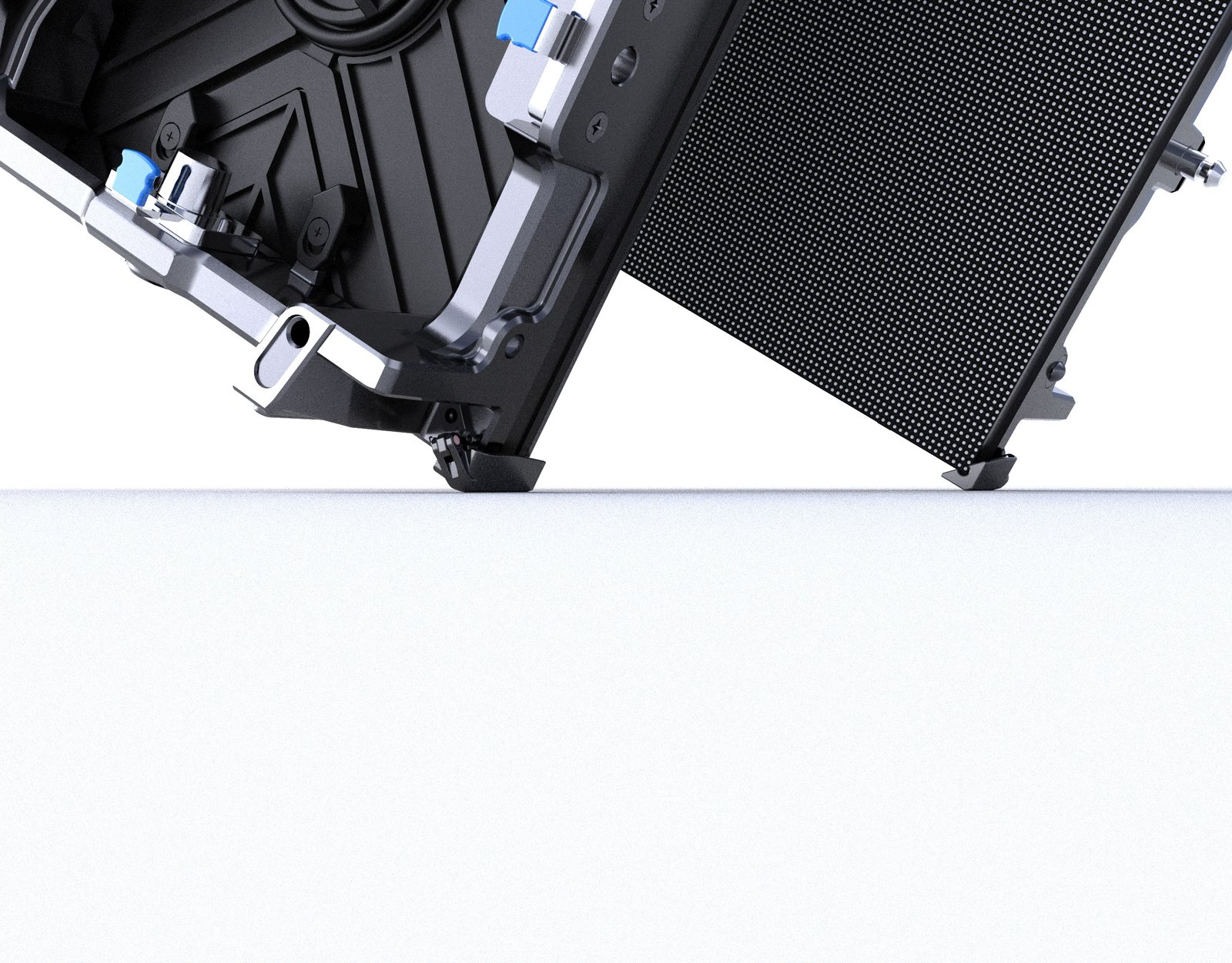

Corner Protector Design
protect the panel from surprise impact

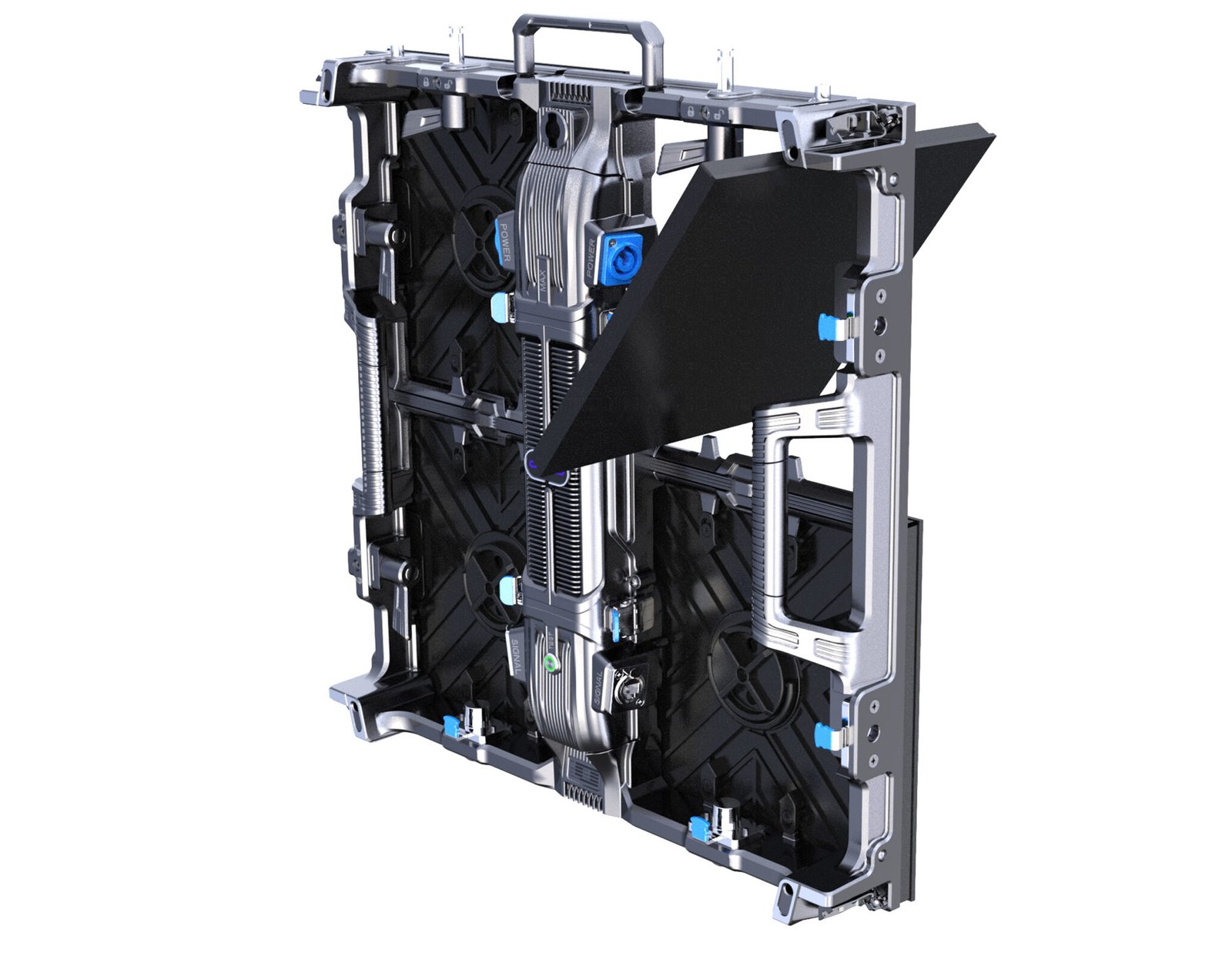

Rear & Front service
Quick module replacement
CKGLED X-MAX SERIES SPECIFICATIONS | ||||||||||
Item | Indoor | Outdoor | ||||||||
Model number | P1.5 | P1.9 | P2.6 | P2.9 | P3.9 | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 |
Pixel Pitch (mm) | 1.56mm | 1.95mm | 2.604mm | 2.976mm | 3.91mm | 1.95mm | 2.604mm | 2.976mm | 3.91mm | 4.81 |
Physical Density | 409,600 | 262,144 | 147,456 | 112,896 | 65,536 | 262,144 | 147,456 | 112,896 | 65,536 | 43,264 |
LED Lamp Type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1010 | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
Scan frequency | 1/40 | 1/32 | 1/32 | 1/28 | 1/16 | 1/16 | 1/24 | 1/28 | 1/16 | 1/13 |
Module Size | 250*250mm | |||||||||
Cabinet Material | 500*500mm /1000*500mm | |||||||||
Cabinet weight | 6kg/ 11kg | 6.5kg/ 11.2kg | ||||||||
Viewing Angle | H:160° / V:160° | |||||||||
Grey Scale | 16Bit | |||||||||
Frame Rate | 60Hz | |||||||||
Refresh Rate | 3840/7680Hz | |||||||||
Brightness | 700 | 800 | 1000 | 1000 | 1000 | 4500 | 4500 | 5000 | 5000 | 5000 |
Input Voltage | AC 100~240V | |||||||||
Avg.Power Consumption | 160（W/m²） | 220（W/m²） | ||||||||
Max.Power Consumption | 560（W/m²） | 650（W/m²） | ||||||||
IP Grade | IP33 | IP65 | ||||||||
Control Method | Sync/Async/4G/WIFI | |||||||||
Maintenance | Rear & Front service | |||||||||
Working Humidity | 10 ～ 85%RH | 10 ～ 95%RH | ||||||||
Working Temperture | -30℃ ～ 70℃ | |||||||||
Life span | 100,000 hours | |||||||||
Certificate | CCC/RoHS / CE / FCC / ETL | |||||||||
