X1PRO SERIES
Experience superior convenience.

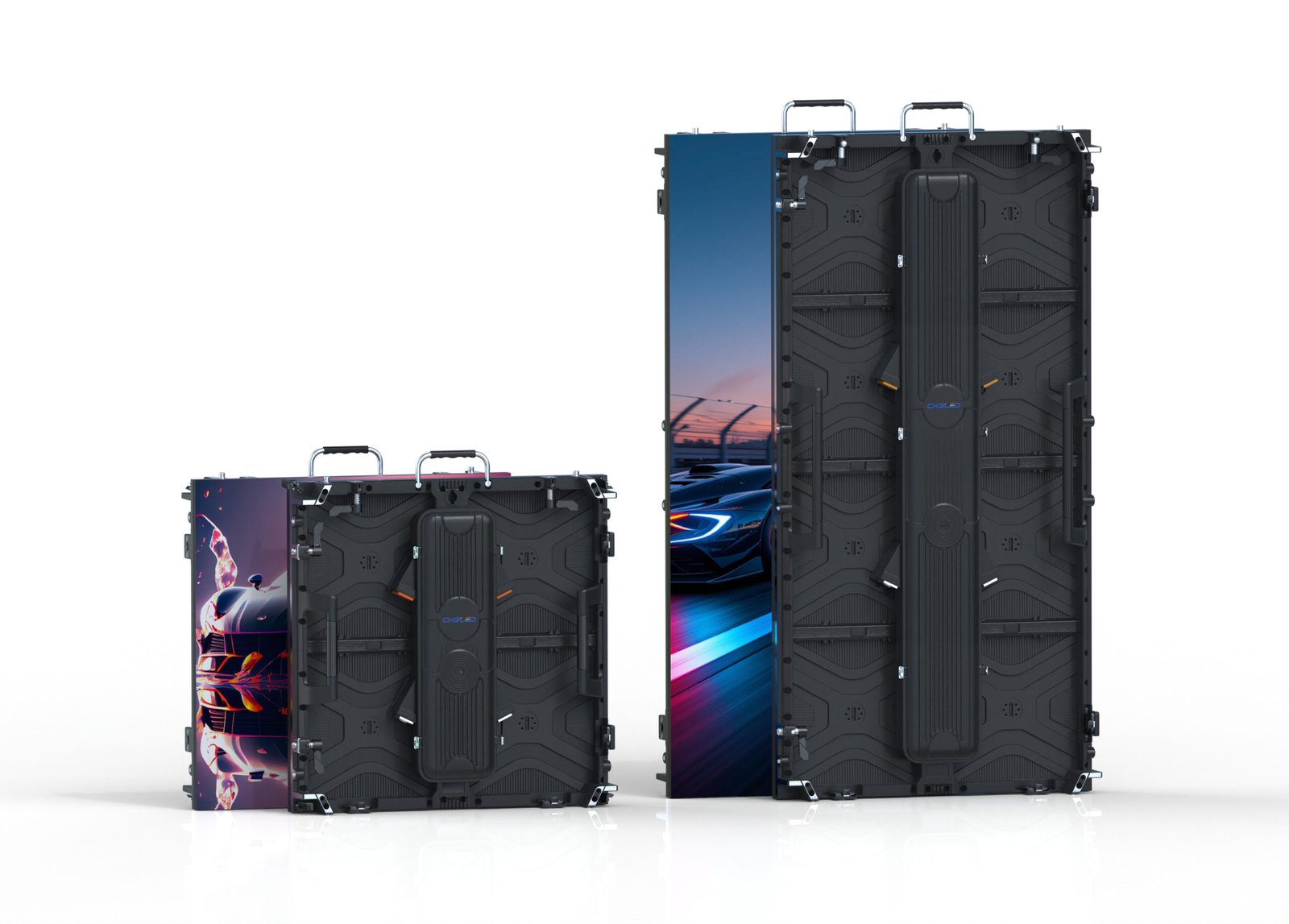

Two compatible sizes: 500x500mm and 500x1000mm for option.
Super lightweight: 30kg only.
Disassemblable for option: adjustable within -15° – 15°.
Simple and quick installation & disassembly: with quick spring locks.
160° wide viewing angle, no mosaic phenomenon, better contract ratio.
16-bit high grayscale/3840Hz high image refresh rate, supporting 4K video.

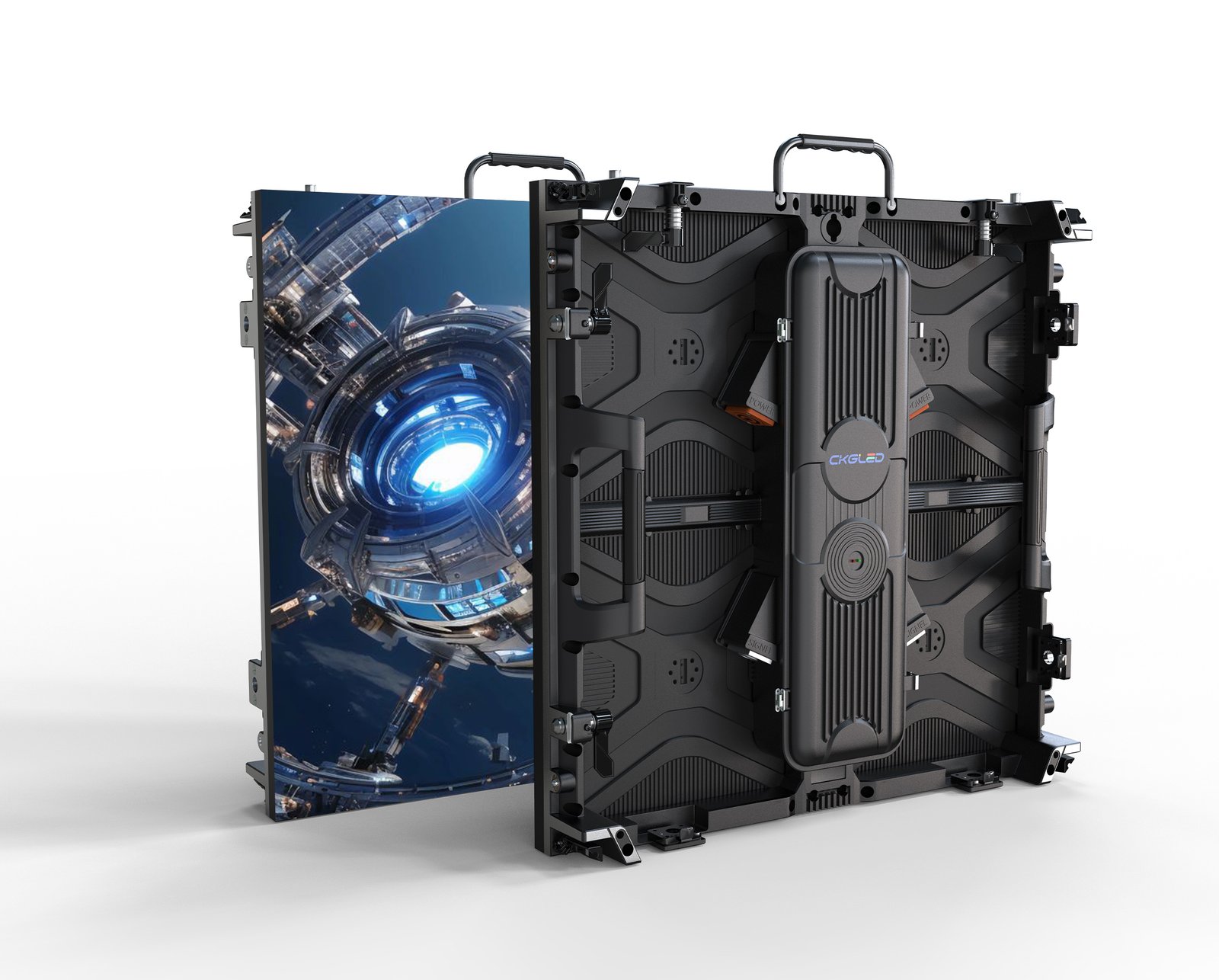

500*500mm Cabinets

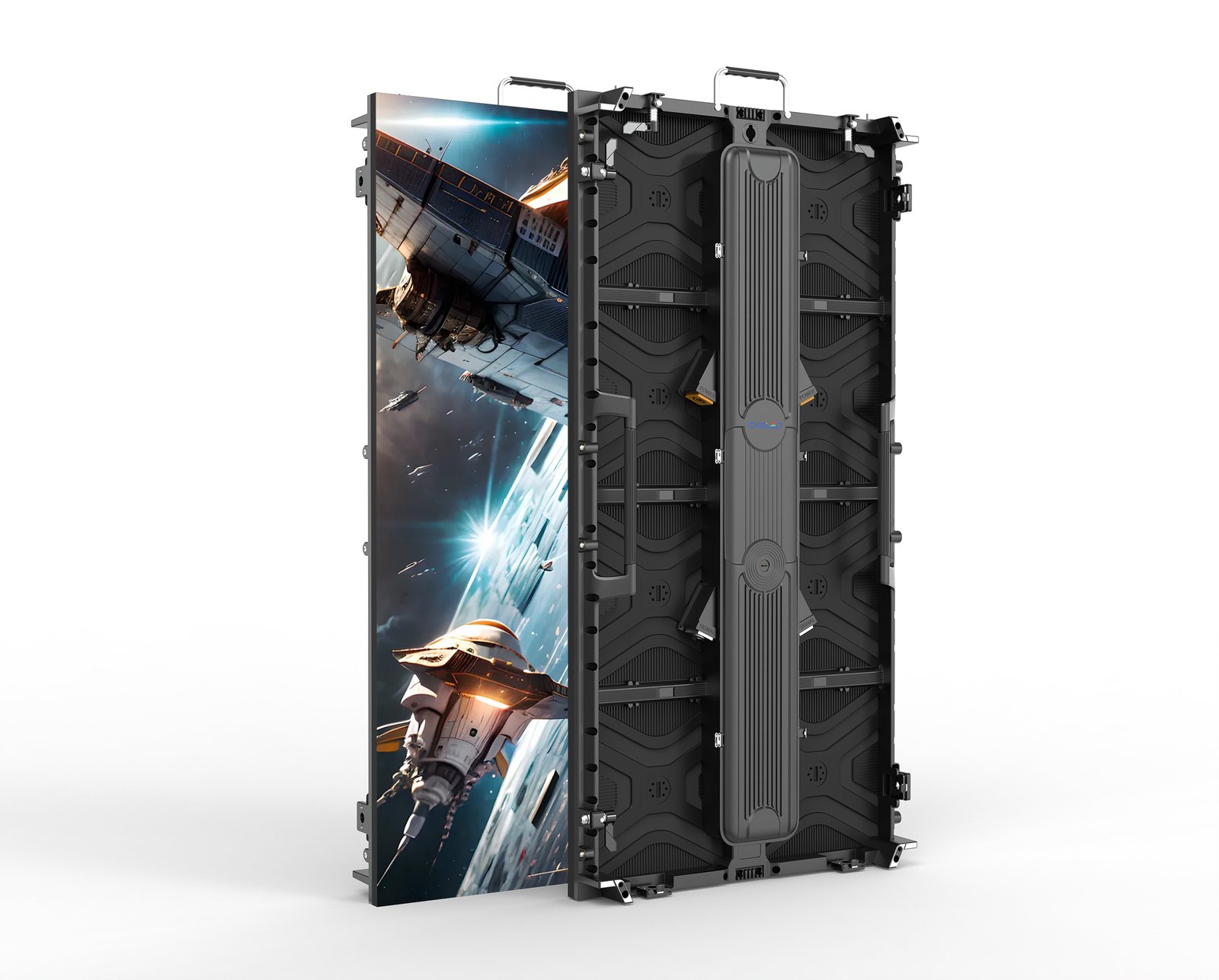

500*1000mm Cabinets

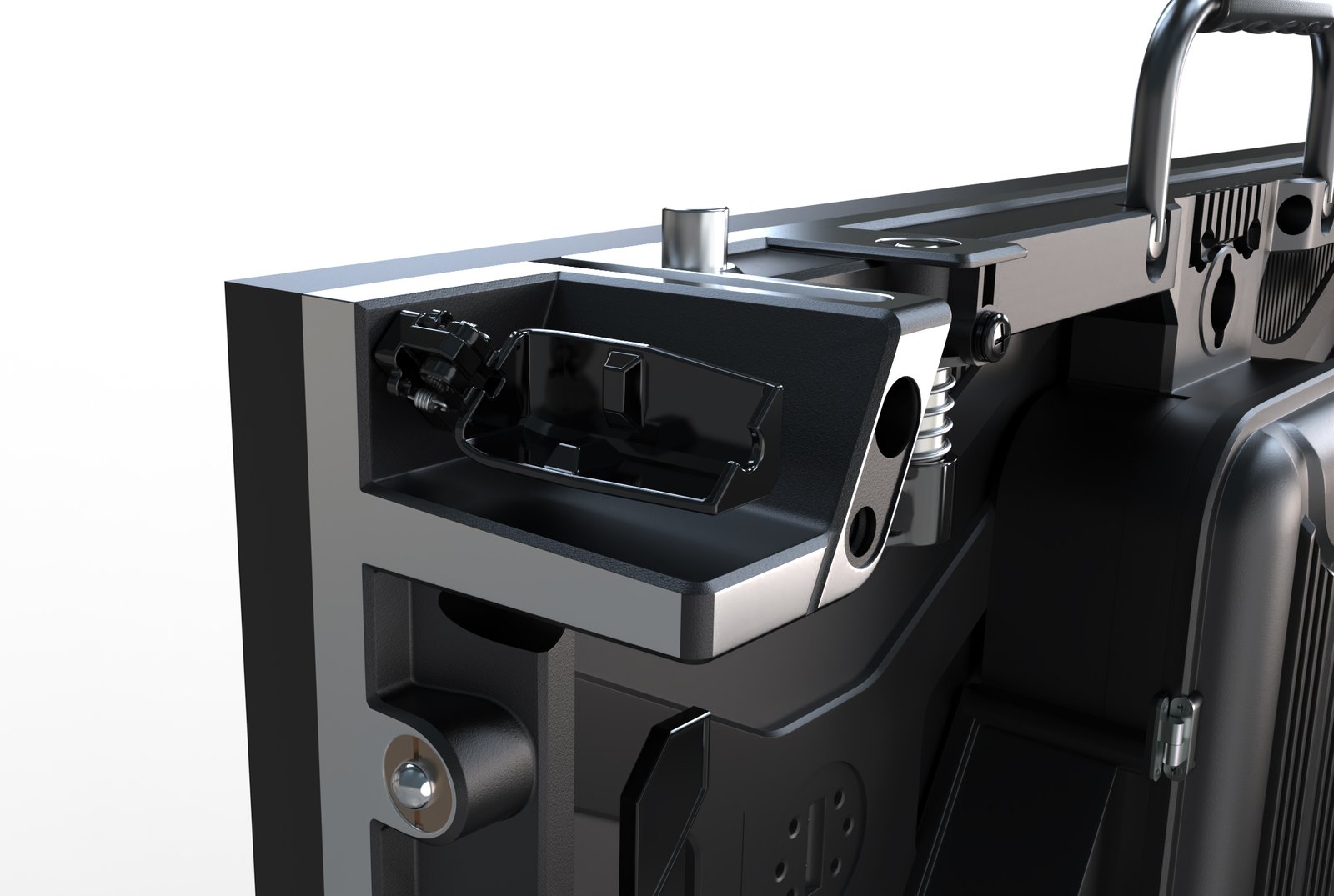

Corner Protector Design
protect the panel from surprise impact
Fast Installation.
Ultra light and thin panel, single-person operation. Fast up-down locks and positioning pins to ensure precise and quick installation.
UHD Quality Visual Performance
16bits high grey scale / 3840Hz high refresh rate, 4K video supportive.

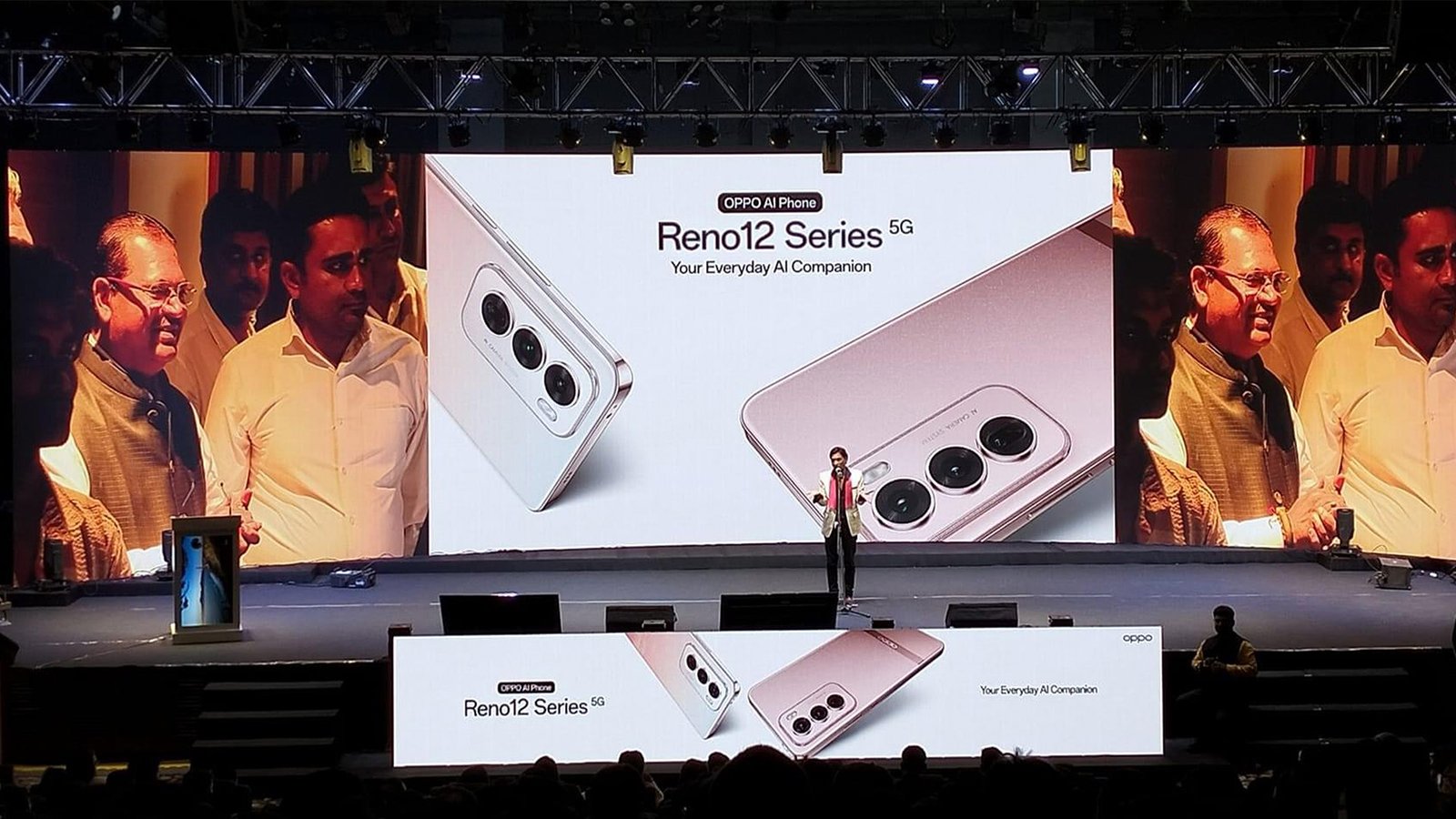

launch event

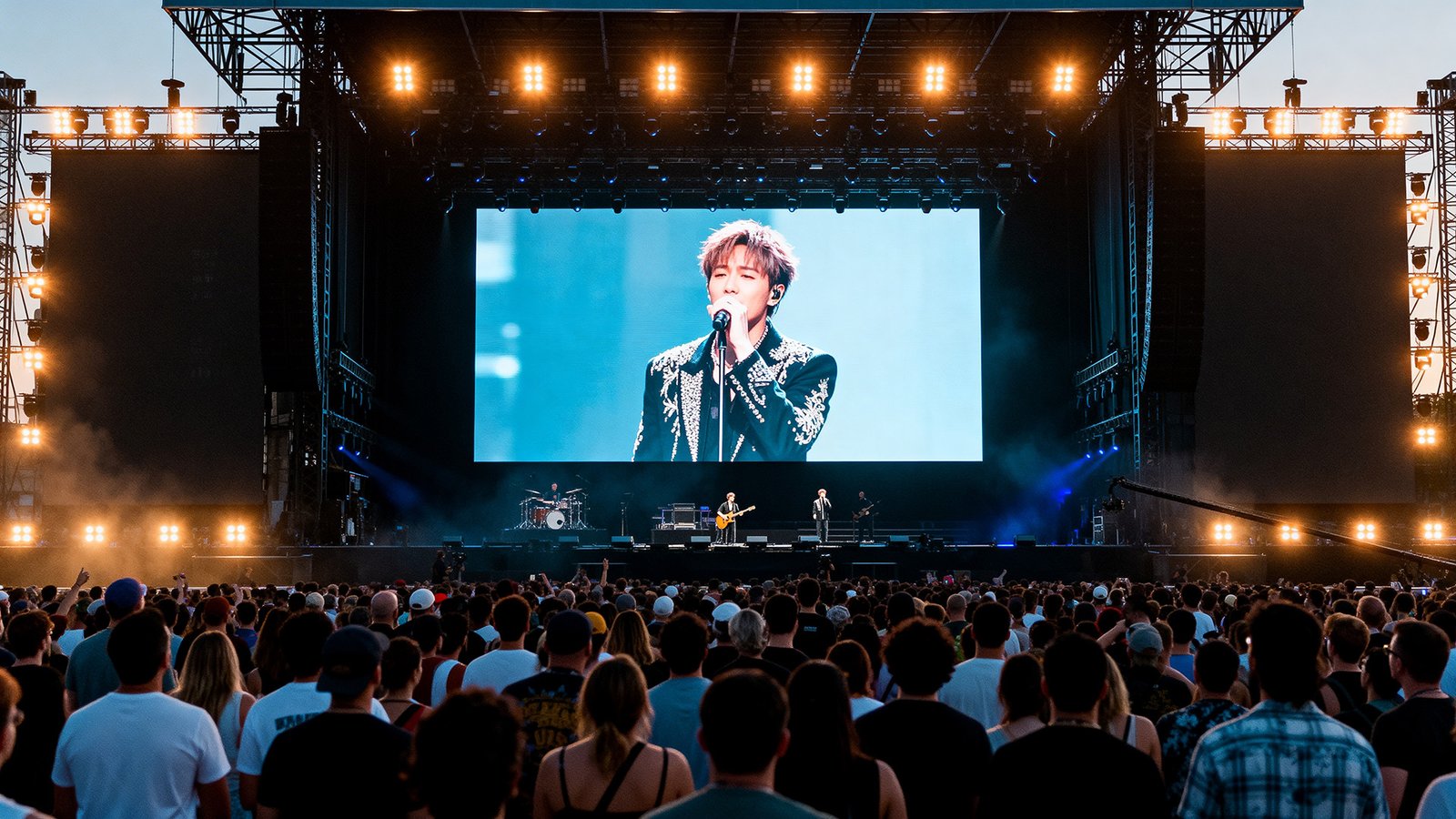

Vocal Concert

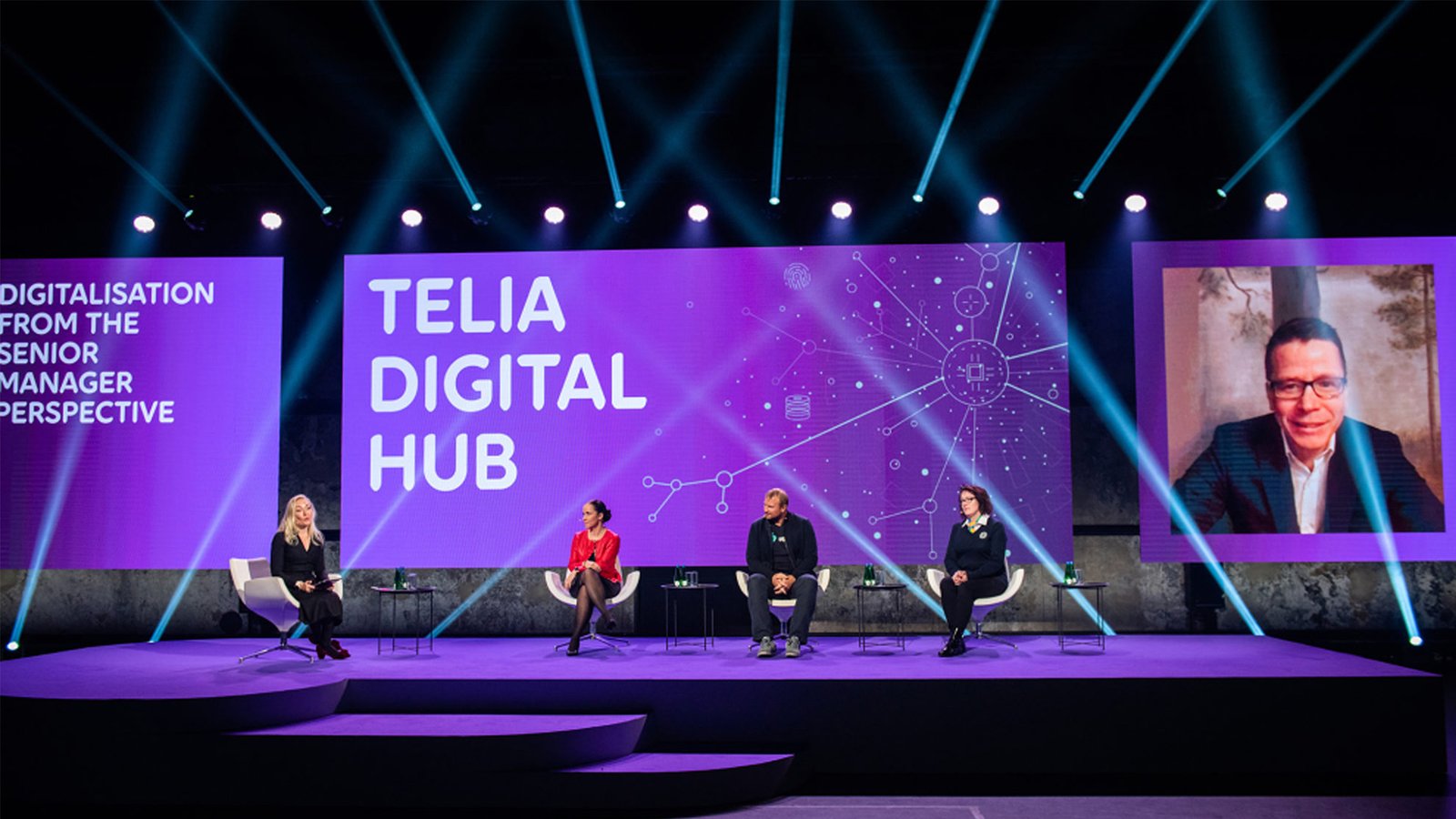

Chat Show
CKGLED X1PRO SERIES SPECIFICATIONS | |||||||||
Item | Indoor | Outdoor | |||||||
Model number | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 | P2.6 | P2.9 | P3.9 | P4.8 |
Pixel Pitch (mm) | 1.95mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
Physical Density | 262,144 | 147,456 | 112,896 | 65,536 | 43,035 | 147,456 | 112,896 | 65,536 | 43,264 |
LED Lamp Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
Scan frequency | 1/32 | 1/32 | 1/28 | 1/16 | 1/16 | 1/24 | 1/28 | 1/16 | 1/13 |
Module Size | 250*250mm | ||||||||
Cabinet Material | 500*500mm /1000*500mm | ||||||||
Cabinet weight | 6.2kg/ 11.7kg | 6.5kg/ 12kg | |||||||
Viewing Angle | H:160° / V:140° | ||||||||
Grey Scale | 16Bit | ||||||||
Frame Rate | 60Hz | ||||||||
Refresh Rate | 3840/7680Hz | ||||||||
Brightness | 800 | 1000 | 1000 | 1000 | 1000 | 4500 | 5000 | 5000 | 5000 |
Input Voltage | AC 100~240V | ||||||||
Avg.Power Consumption | 160（W/m²） | 220（W/m²） | |||||||
Max.Power Consumption | 560（W/m²） | 650（W/m²） | |||||||
IP Grade | IP33 | IP65 | |||||||
Control Method | Sync/Async/4G/WIFI | ||||||||
Maintenance | Rear & Front service | ||||||||
Working Humidity | 10 ～ 85%RH | 10 ～ 95%RH | |||||||
Working Temperture | -30℃ ～ 70℃ | ||||||||
Life span | 100,000 hours | ||||||||
Certificate | CCC/RoHS / CE / FCC / ETL | ||||||||
