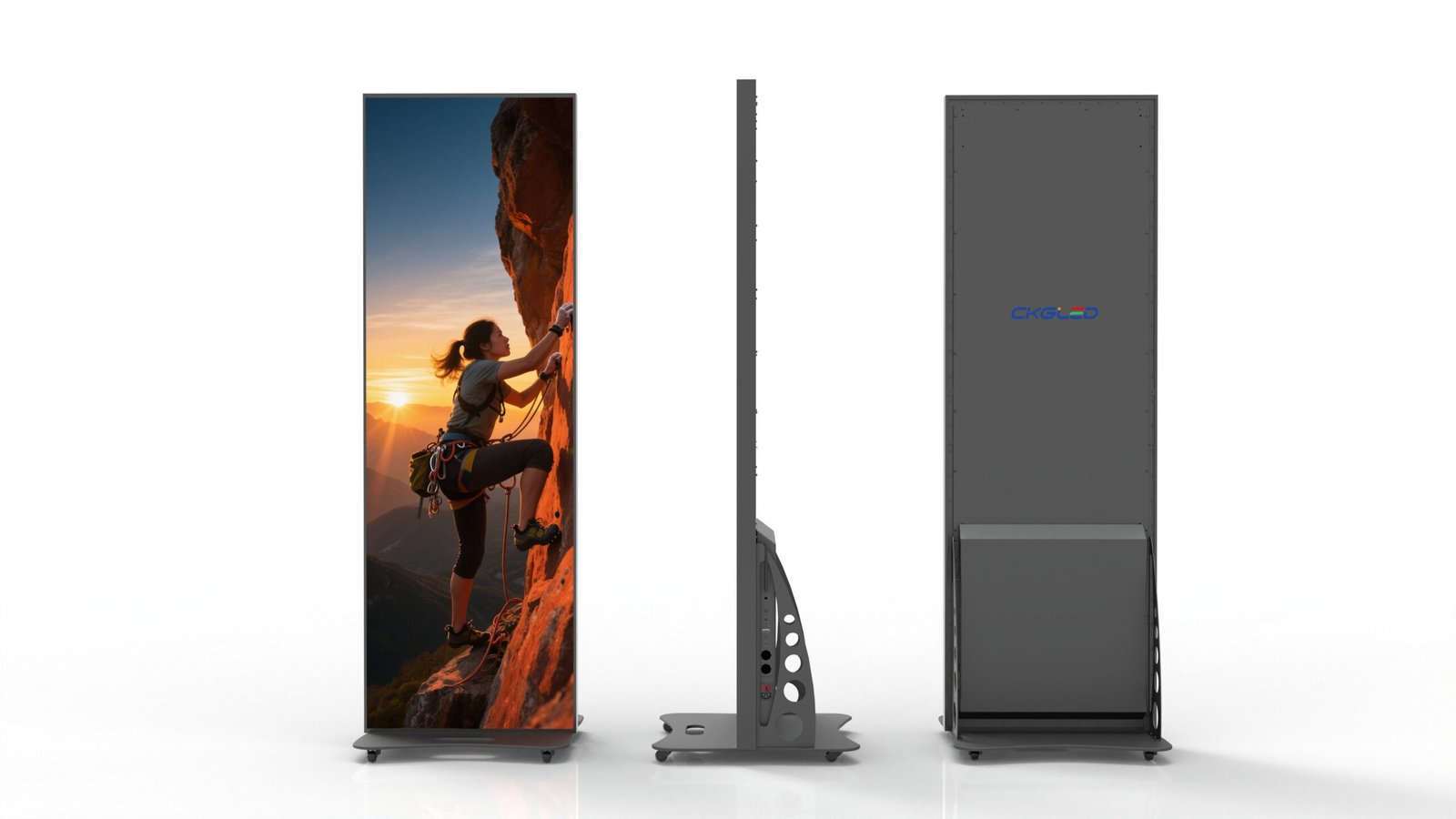

INDOOR LED POSTER
Show Up, Stand Out
Multiple inputs. HDMI / USB / Ethernet / WI-FI.
Acrylic board protective design. Protect the poster from water and accidental impact.
Easy content updating. Wireless control via WI-FI.
Connectivity to assemble into a big & seamless screen. Wooden case & Flight case optional.
High definition. LED posters feature high resolution and high pixel density. Provide high-definition and high-quality contents.
INDOOR LED POSTER Key Features
With Wheels.
Easy to move.
Multiple inputs.
HDMI / USB / Ethernet / WI-FI.
Seamless Splicing
Connectivity to assemble into a big & seamless screen.
High definition.
LED posters feature high resolution and high pixel density. Provide high-definition and high-quality contents.
CKGLED INDOOR LED POSTER SPECIFICATIONS | ||||||
Model number | P1.25 | P1.5 | P1.6 | P1.8 | P2 | P2.5 |
Pixel Pitch | 1.25mm | 1.53mm | 1.667mm | 1.86mm | 2.0mm | 2.5mm |
LED Lamp Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2020 |
Scan Frequency | 1/64 | 1/52 | 1/48 | 1/43 | 1/40 | 1/32 |
Standard cabinet size | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm |
Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
Gray scale | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit |
Refresh rate | 3840Hz | |||||
Pixel density | 640000 | 422500 | 360000 | 288900 | 250000 | 160000 |
Continuous working time | >72（Hrs） | >72（Hrs） | >72（Hrs） | >72（Hrs） | >72（Hrs） | >72（Hrs） |
Frame Rate | 60 | 60 | 60 | 60 | 60 | 60 |
Avg.Power Consumption | 220 | 220 | 220 | 220 | 220 | 220 |
Max.Power Consumption | 600 | 600 | 600 | 600 | 600 | 600 |
IP Grade | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
Control method | HDMI / ETHERNET / USB / WIFI | |||||
Maintenance | Front service | |||||
Working humidity | 10 ～ 85%RH | |||||
Working Temperature | -30℃ ～ 60℃ | |||||
Life span | 100,000 | |||||
