FOLDING LED POSTER
Redefining Portability In LED Poster
With Wheels, Easy to move.
Multiple inputs, HDMI / USB / Ethernet / WI-FI.
Supports folding, compact in size, Convenient for storage and transportation.
Quick splicing, with built-in magnetic frame, It’s easier to integrate a big & seamless screen.
Convenient content update, Wireless control is via WI-FI.
GOB / HOB Technology optional, waterproof and impact-resistant.
How do I use it?

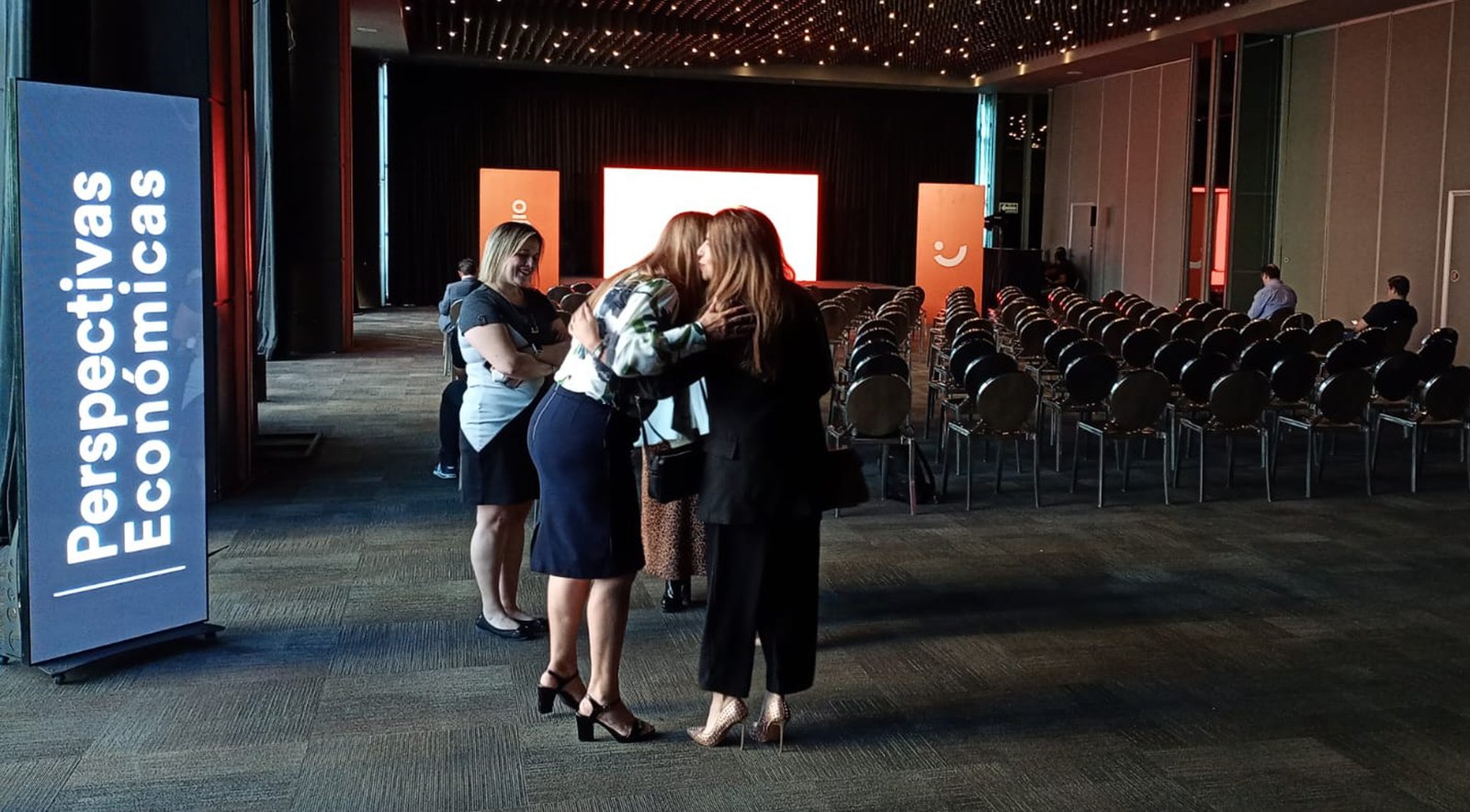

Site of Activity
product marketing

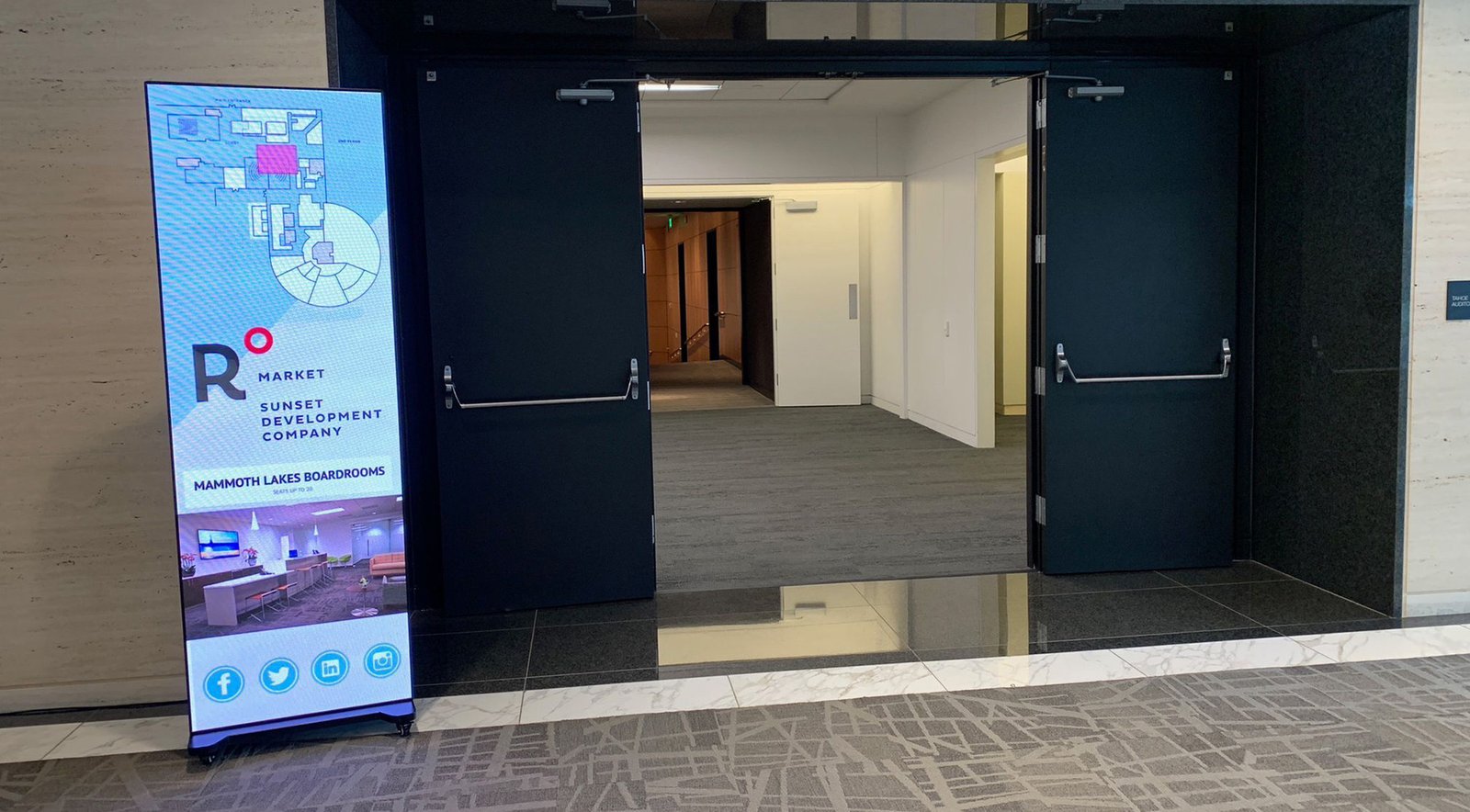

Location Navigation

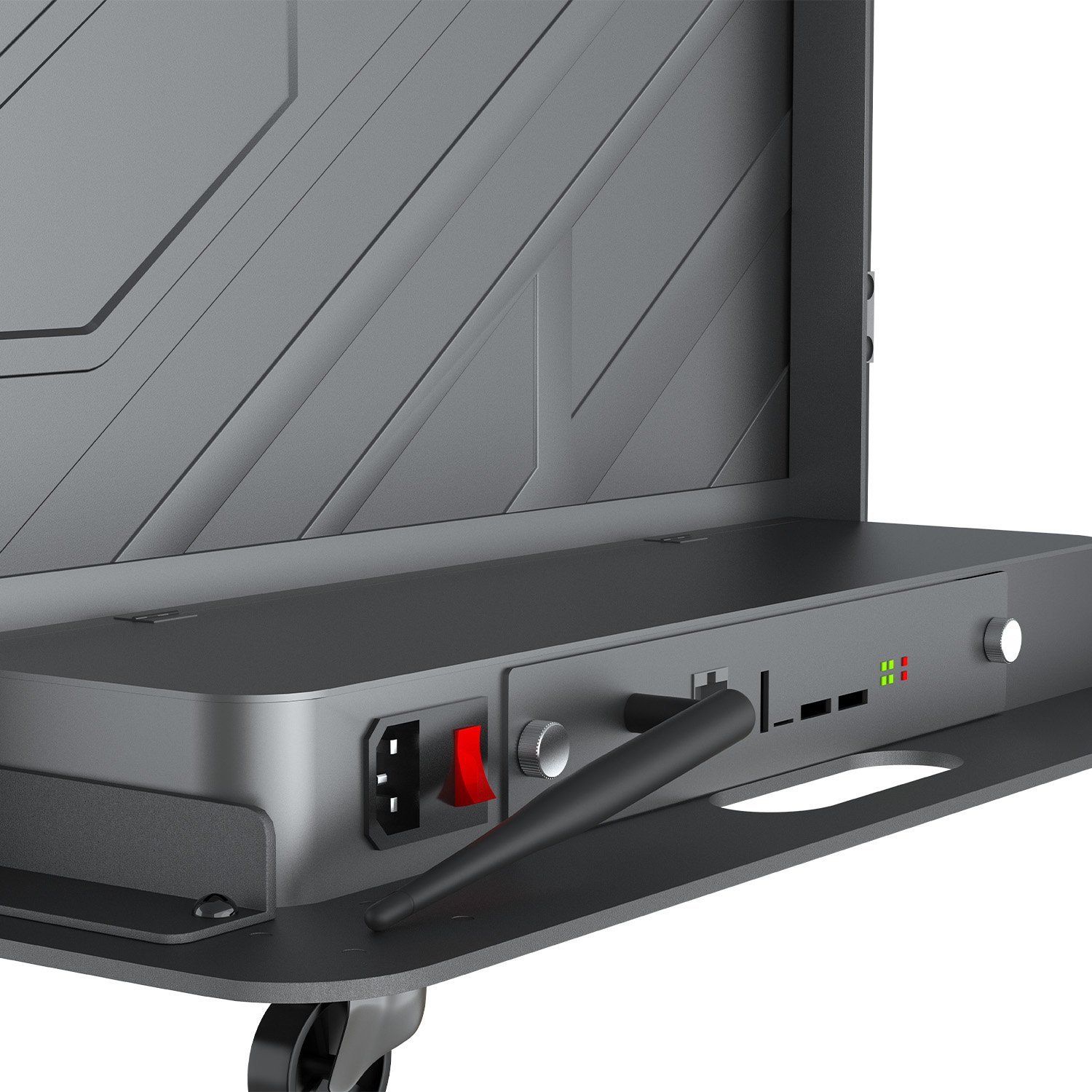

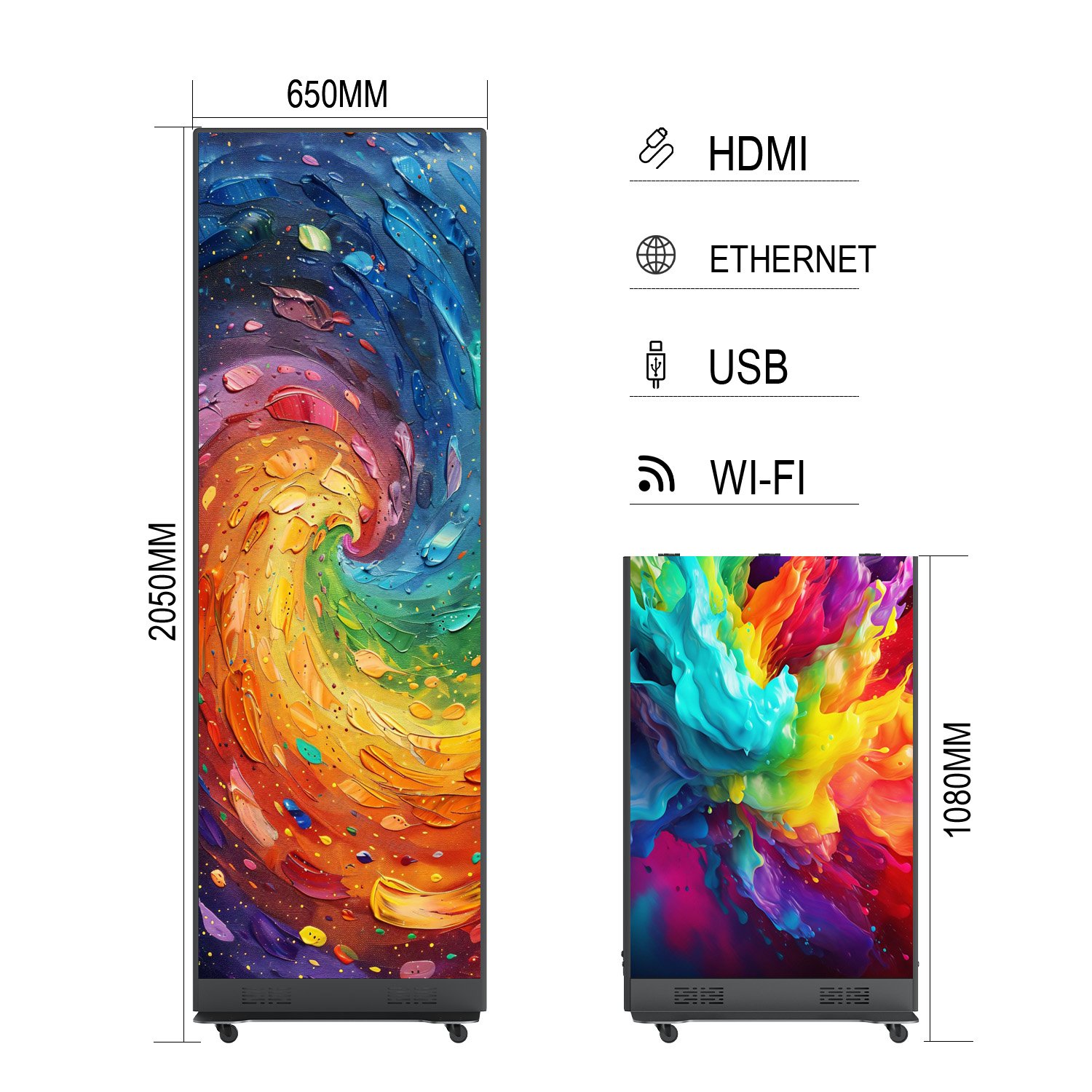

Multiple inputs.
HDMI / USB / Ethernet / WI-FI.

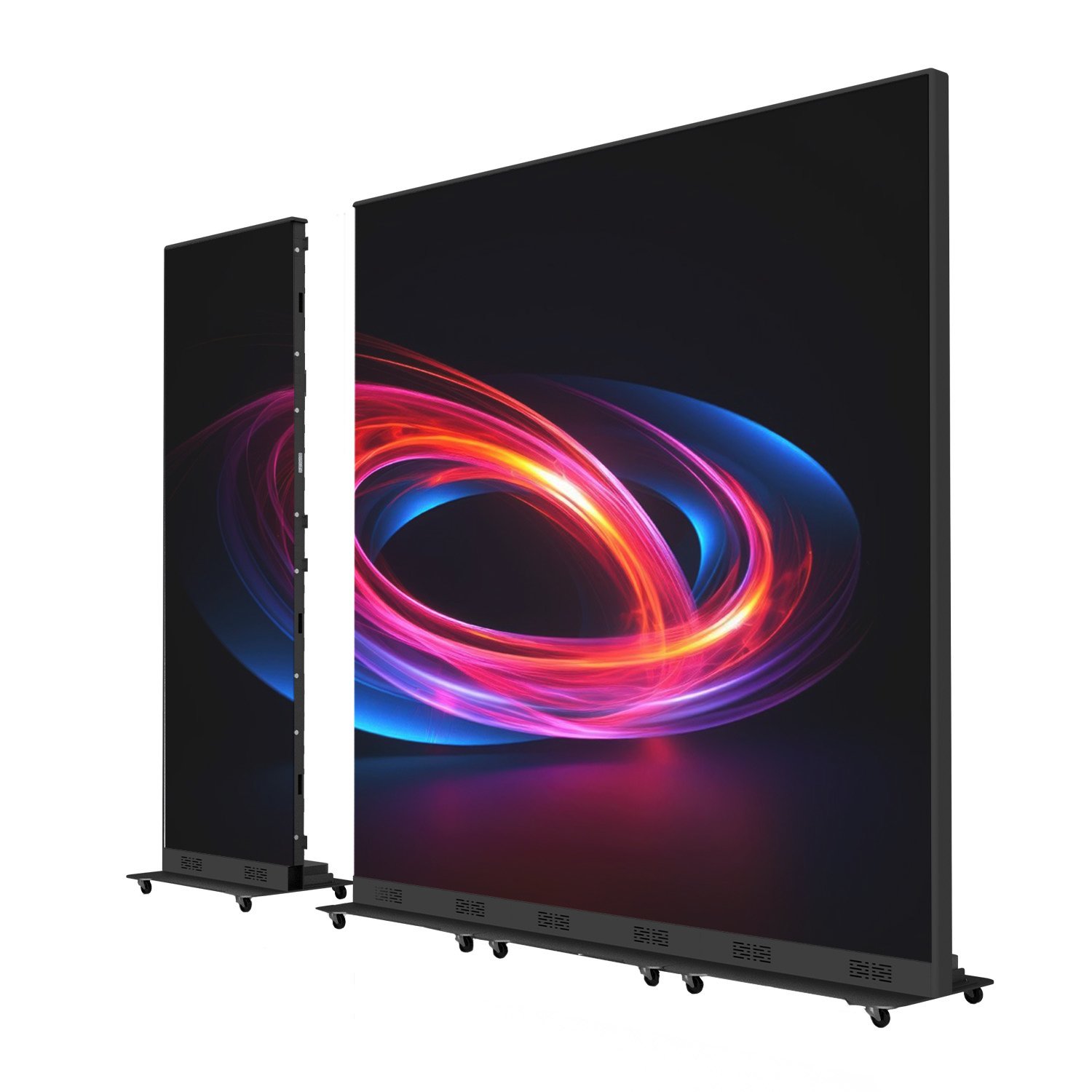

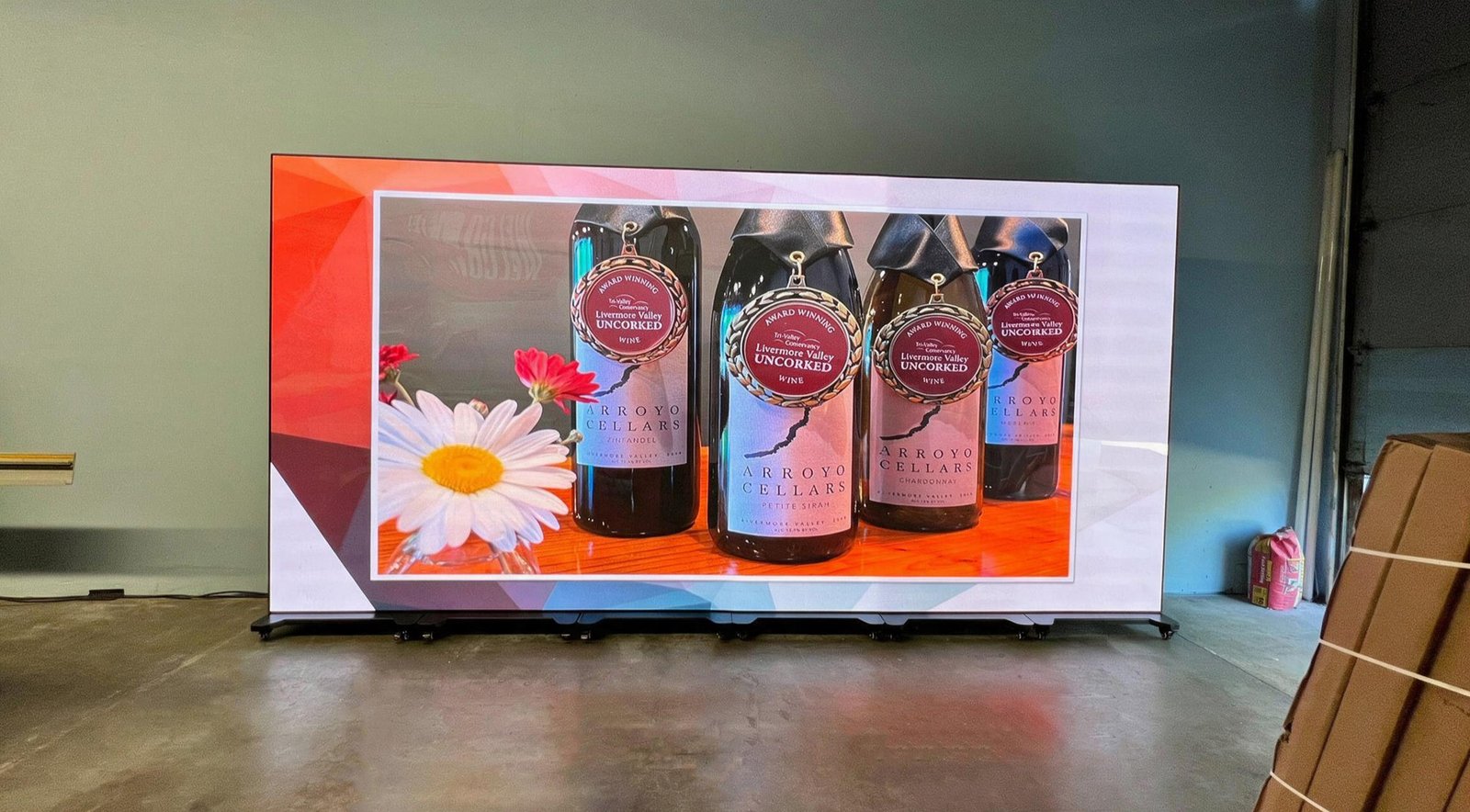

Quick splicing, with built-in magnetic frame.
It's easier to integrate a big & seamless screen.
Convenient content update.
Wireless control is via WI-FI.

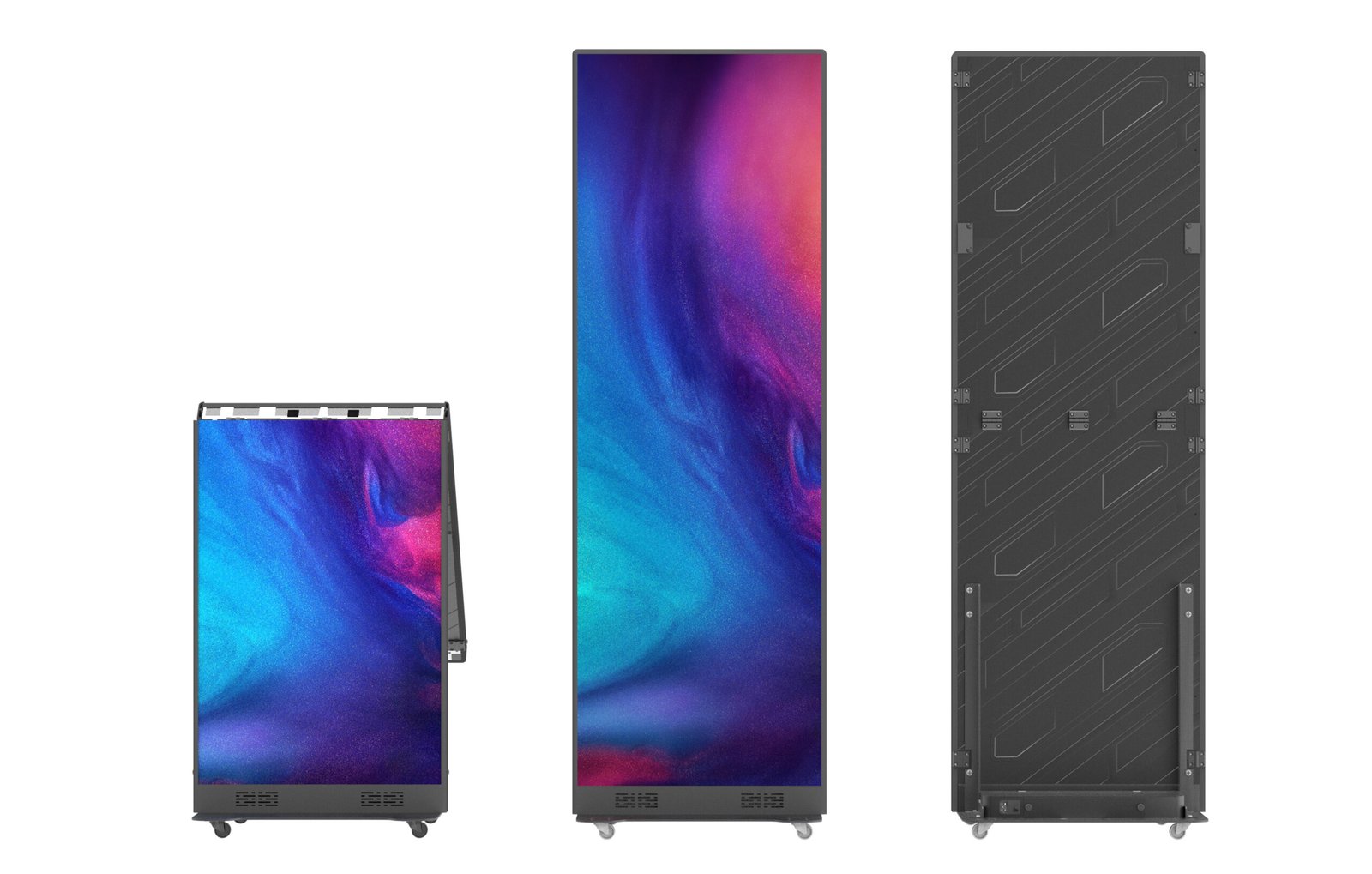

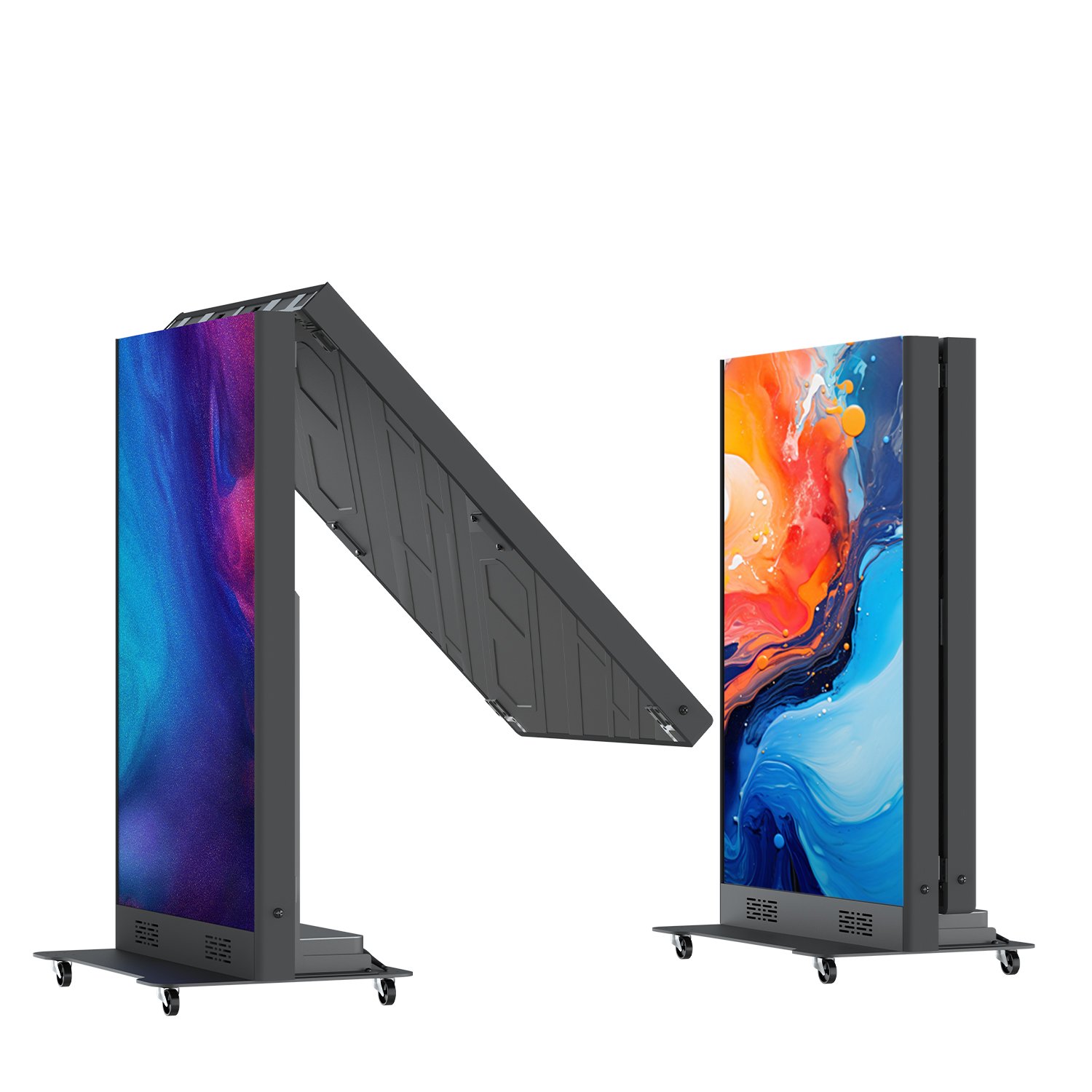

Supports folding, compact in size.
Convenient for storage and transportation.

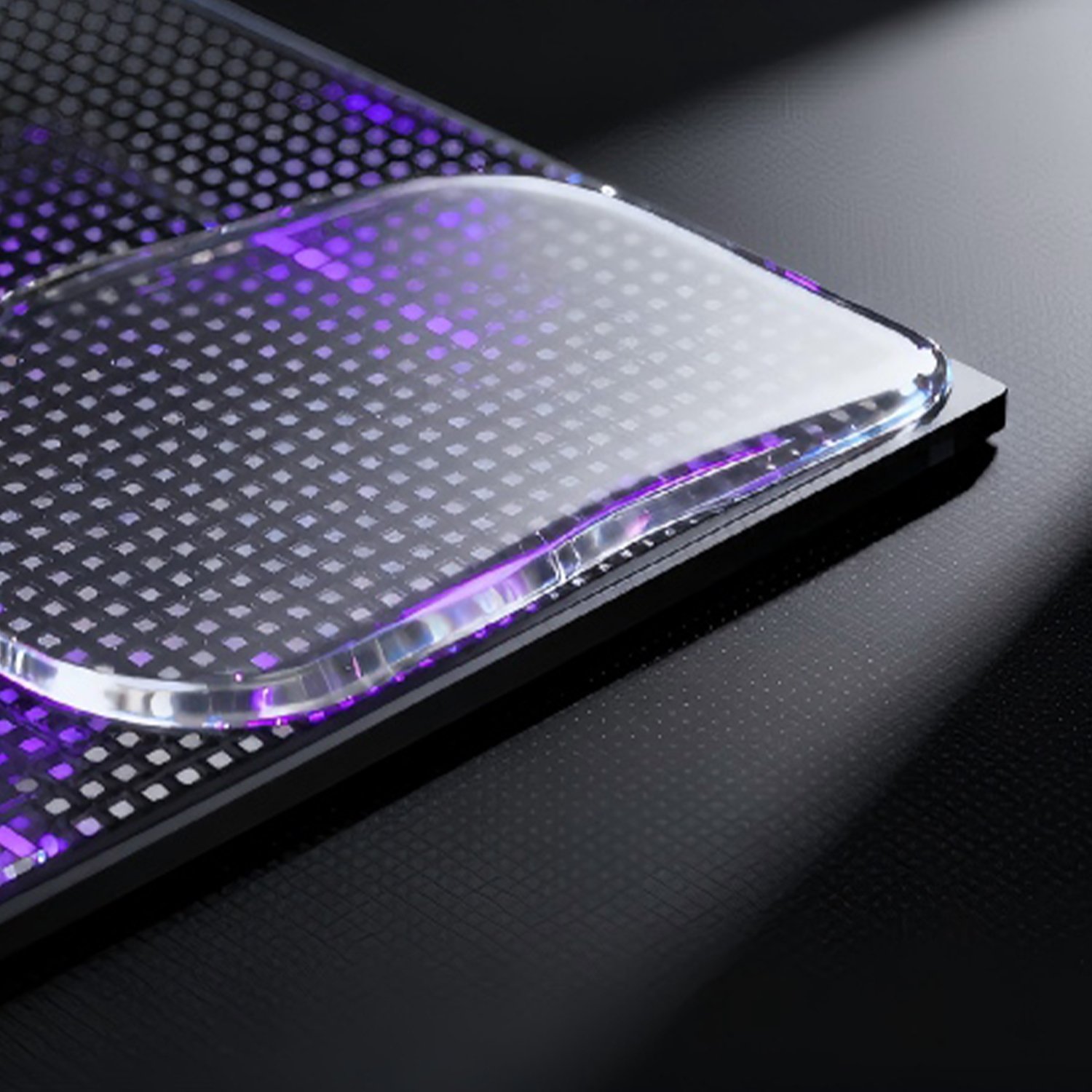

GOB / HOB Technology optional.
A protective layer has been added to the surface of the screen, waterproof and impact-resistant.

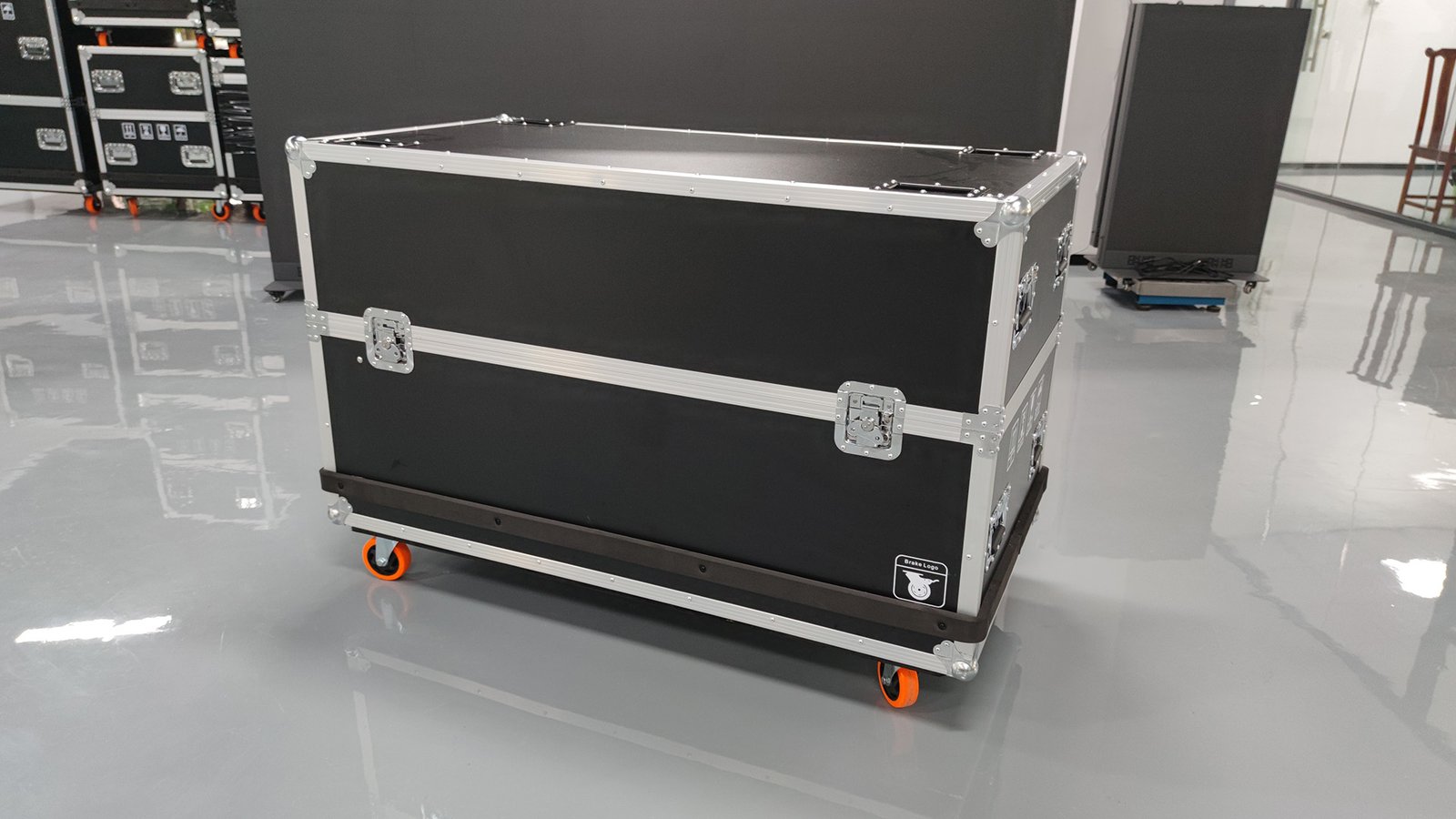

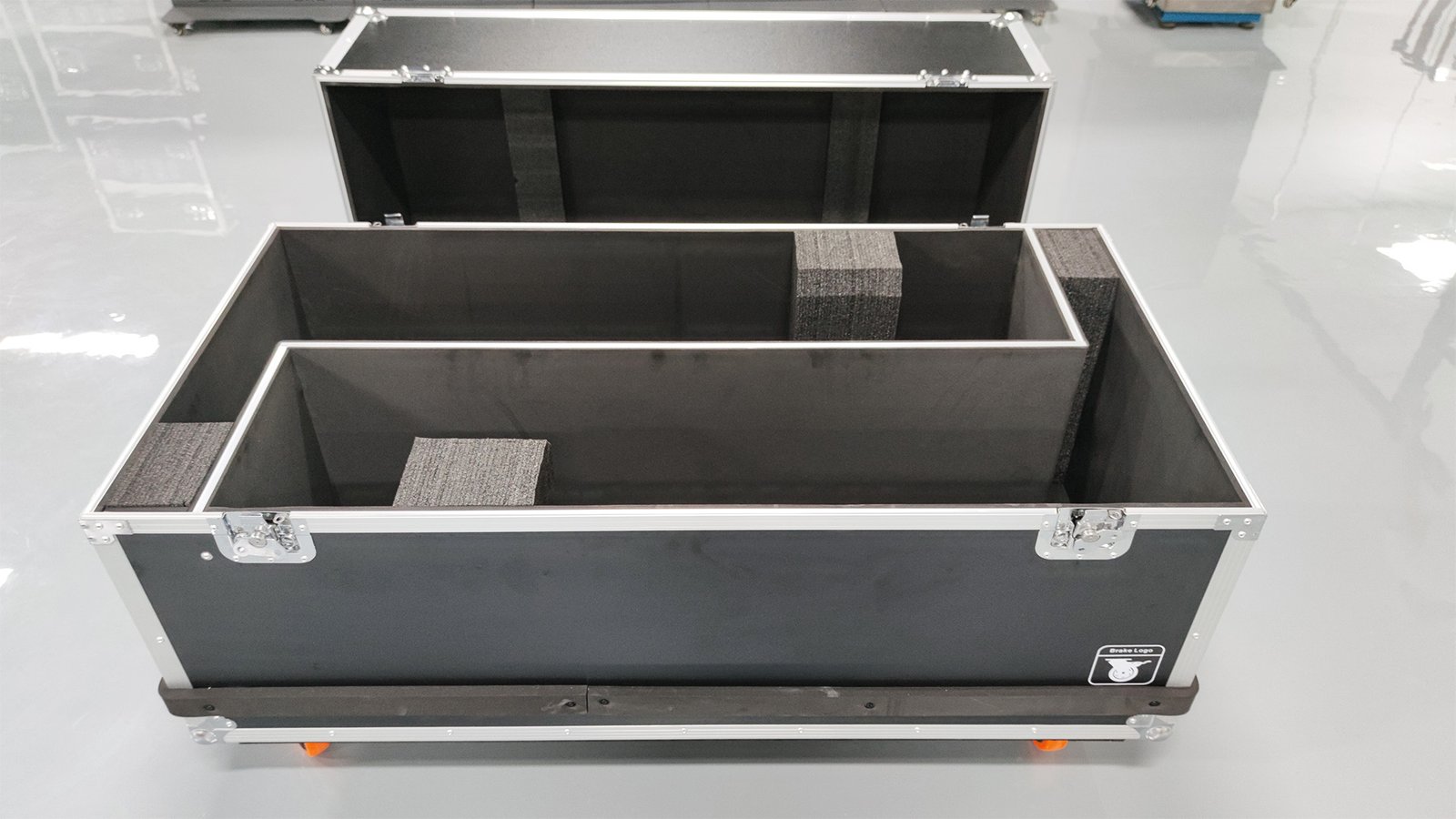

How should I transport it?
CKGLED INDOOR FOLDABLE LED POSTER SPECIFICATIONS | ||||||
Item | Technical Parameter | |||||
Model number | P1.2 | P1.5 | P1.6 | P1.8 | P2 | P2.5 |
Pixel Pitch | 1.25mm | 1.53mm | 1.667mm | 1.86mm | 2mm | 2.5mm |
LED Lamp Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2020 |
Scan Frequency | 1/64 | 1/52 | 1/48 | 1/43 | 1/40 | 1/32 |
Standard cabinet size | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm |
Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
Gray scale | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit |
Refresh rate | 3840Hz | |||||
Pixel density | 640000 | 422500 | 360000 | 288900 | 250000 | 160000 |
Continuous working time | >72（Hrs） | >72（Hrs） | >72（Hrs） | >72（Hrs） | >72（Hrs） | >72（Hrs） |
Frame Rate | 60 | 60 | 60 | 60 | 60 | 60 |
Avg.Power Consumption | 160 | 160 | 160 | 160 | 160 | 160 |
Max.Power Consumption | 550 | 550 | 550 | 550 | 550 | 550 |
IP Grade | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
Control method | HDMI / ETHERNET / USB / WIFI | |||||
Maintenance | Front service | |||||
Working humidity | 10 ～ 85%RH | |||||
Working Temperature | -30℃ ～ 60℃ | |||||
Life span | 100,000 | |||||
